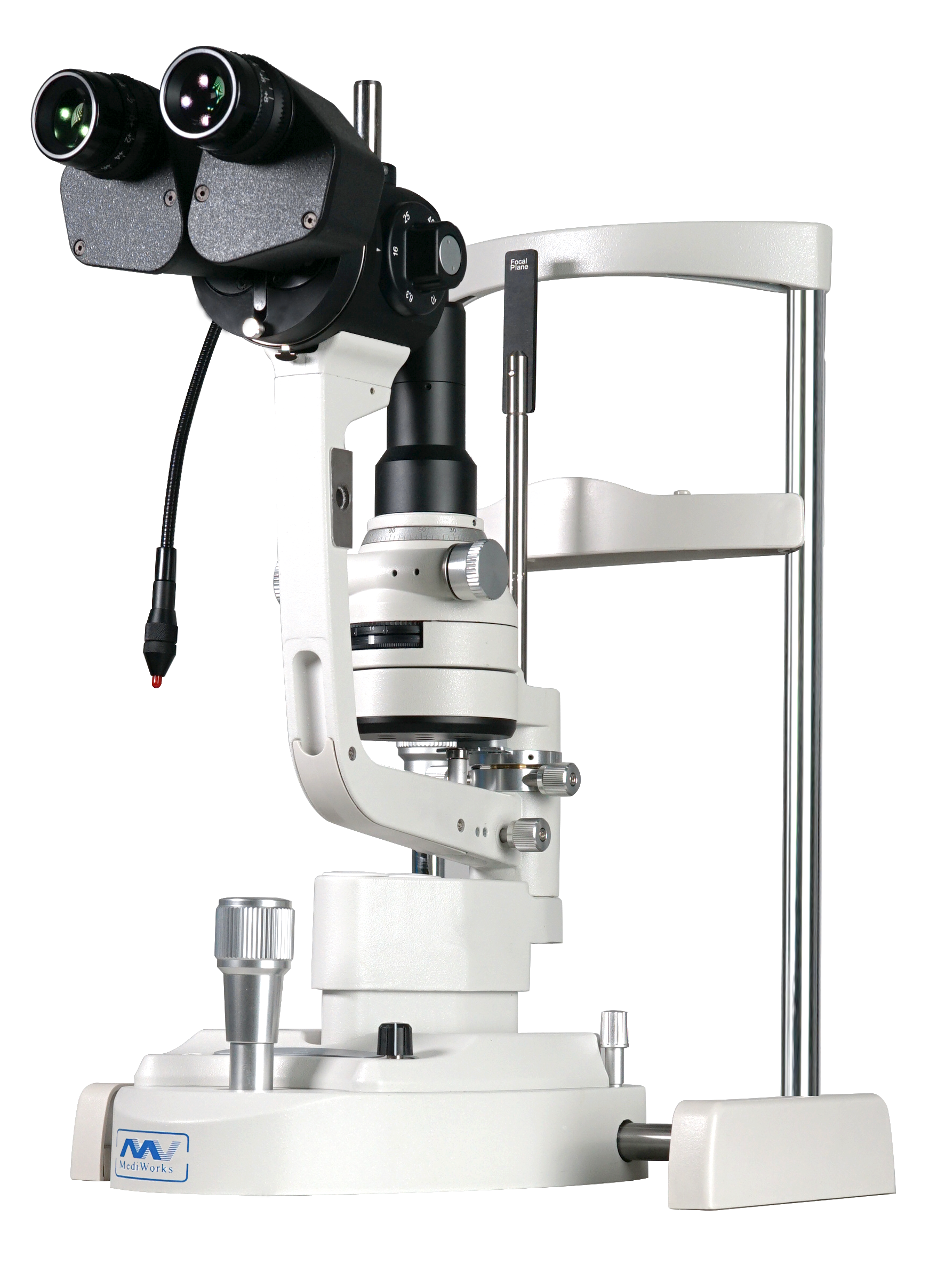

Three or Five-Step Magnification with LED Illumination

LED Illumination

(Available for S260/S260S)

MediWorks LED light source is similar to a halogen lamp. The LED has a low color temperature and high illumination intensity, which offers a vivid view of the cornea and corneal nerves. Compared to incandescent lights, LEDs last much longer and reduce energy consumption.

Dedicated to Details

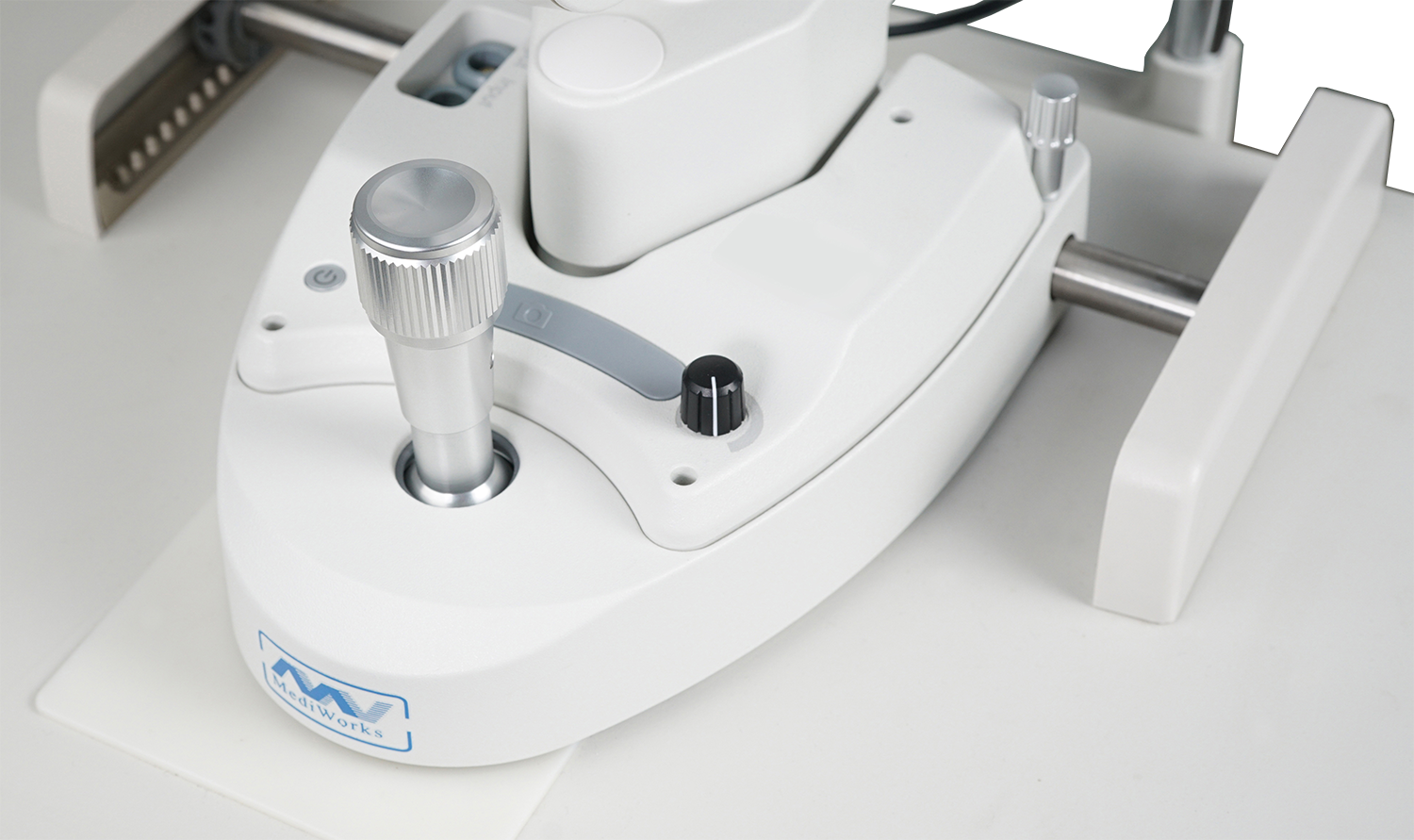

Mediworks slit lamps are not only powerful diagnostic tools they’re a pleasure to use. For example, doctors can control the illumination knob simultaneously with the little finger without releasing the joystick.



Send Me S260 Slit Lamp Pricing

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.



Specifications

Microscope
Microscope Type

Galilean

Magnification Change

Revolving Drum(5 or 3 steps)

Total Magnification Eyepieces

6X, 10X, 16X, 25X, 40X (S260 / S280) ; 10X, 16X, 25X (S/260S/S280S)

Angle between Eyepieces 13°
Pupillary Adjustment 52mm~78mm
Diopter Adjustment +5D~-8D
Field of View

Ø34.7mm, Ø22mm, Ø13.5mm, Ø8.5mm, Ø5.5mm(S260 / S280)

Ø22mm, Ø13.5mm, Ø8.5mm (S260S/S280S)

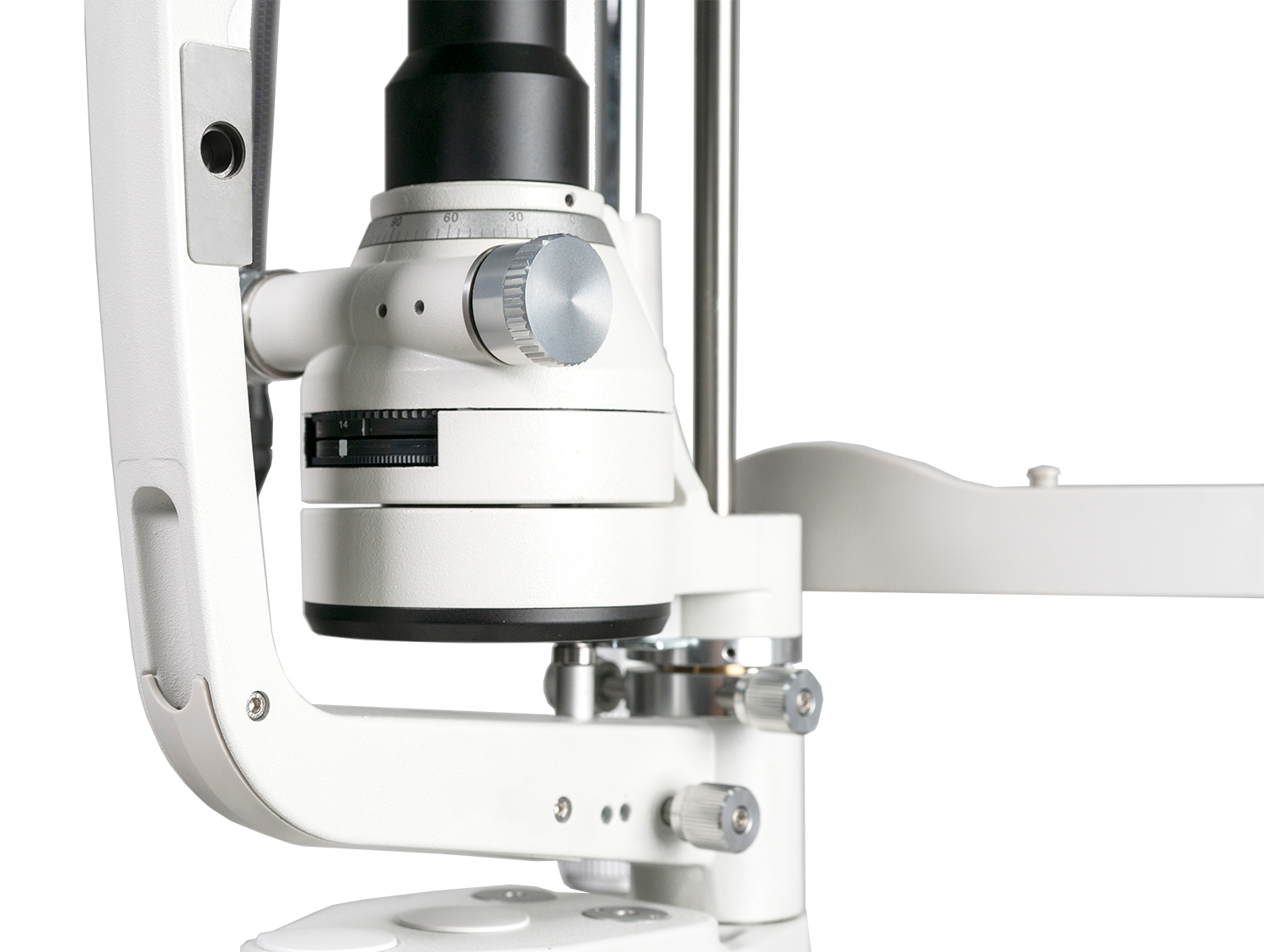

Slit Illumination
Slit Width

0~14mm continuous (slit becomes a circle at 14mm)

Slit Length

1~14mm continuous

Aperture Diameters Ø14mm、Ø8mm、Ø3.5mm、Ø0.2mm
Slit Angle 0°~180°
Filters Heat-absorbing filter, Red-free filter, CobaltBlue filter
Lamp

≥60KLX (S260/S260S) ;

Instrument Base
Longitudinal Movement 110mm
Lateral Movement 110mm
Vertical Movement

30mm

Fine Base Movement 15mm
Chin-rest
Vertical Movement 80mm
Power Supply
Input Voltage 220V/110V~±10%
Input Frequency 50Hz/60Hz
Power Consumption

10VA (max) (S260/S260S)

Output Voltage Lamp 6V, Fixation 3V
Packaging
Dimension

770mm x 470mm x 570mm(L/W/H)

Gross weight

23kg

Net weight

15kg
