THE C901 Vision Chart with 17 inch LED backlit screen features a new and more effective CNT test. CNT curves are formed and displayed on-screen when the test is finished.

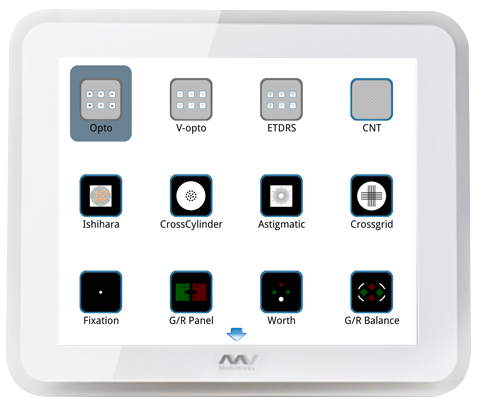

For your convenience you’ll find all the test icons on the home screen.

The C901 speeds up your workflow with a Quick Test Lists that allows you organize and launch you pick of frequently used tests.

The V-style optotype arrangement simplifies the screen layout and keeps the patient focused.

All tests icons are listed on home interface.

Advanced settings

  • The built-in software of C901 is developed on Linux platform. All the optotypes and charts are vector graph.
  • The Vision Chart supports Chinese, English, Russian, and more to come.
  • Adjust the working distance to fit your needs.
  • Set Red and green values in real time based on the clinical condition.
  • Reversible optotypes and charts are available for a mirrored room.
  • Size of image can be changed based on the working distance.
  • Gamma Calibration function brings the professional contrast sensitivity measurement.
  • Two external ports provide for an SD Card and a USB flash disk connection.
  • Plays video in AVI, MKV and MP4 formats.
  • Free software upgrades for the life of the C901
  • Wall bracket is available for mounting the unit.

Standard Accessories

  • Remote Control
  • Red-green glasses
  • Optotype card
  • Hanging Bracket
  • AC-DC Adapter
  • Power Cable

Optional Accessories

  • Desk Support
  • FIoor Stand


Send Me More Info on the Digital Vision Chart

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.



Specifications

Screen C901
Type 17 inch XGA Panel with LED backlit screen
Resolution 1280 x 1024 pixels
Brightness 80~320cd/m2
Charts
Optotypes E, C, Alphabet, Numbers, Children, Allen pictures (Normal and Uncrowded type)
Mask type Change of the background, Single mask, Horizontal mask, Vertical mask, Red/Green mask, Contrast
Decimal 0.05~2.0
Snellen(ft) 20/400~20/10
Snellen(m) 6/120~6/3
LogMAR -0.3~1.3
5-Grade 3.7~5.3
Working Distance 2m~7m (in steps of 0.1m) 6ft-24ft (in steps of 0.5ft) Low vision chart 0.4m~1.5m, in step of 0.1m
Power Supply
Input 100-240V AC,60/50Hz
Consumption 20Watt (max)
Remote Control IR Remote, 2*AA Batteries
Packaging
Dimensions 443mm x 371mm x 40mm (L/W/H)
Net Weight 3.6Kg
