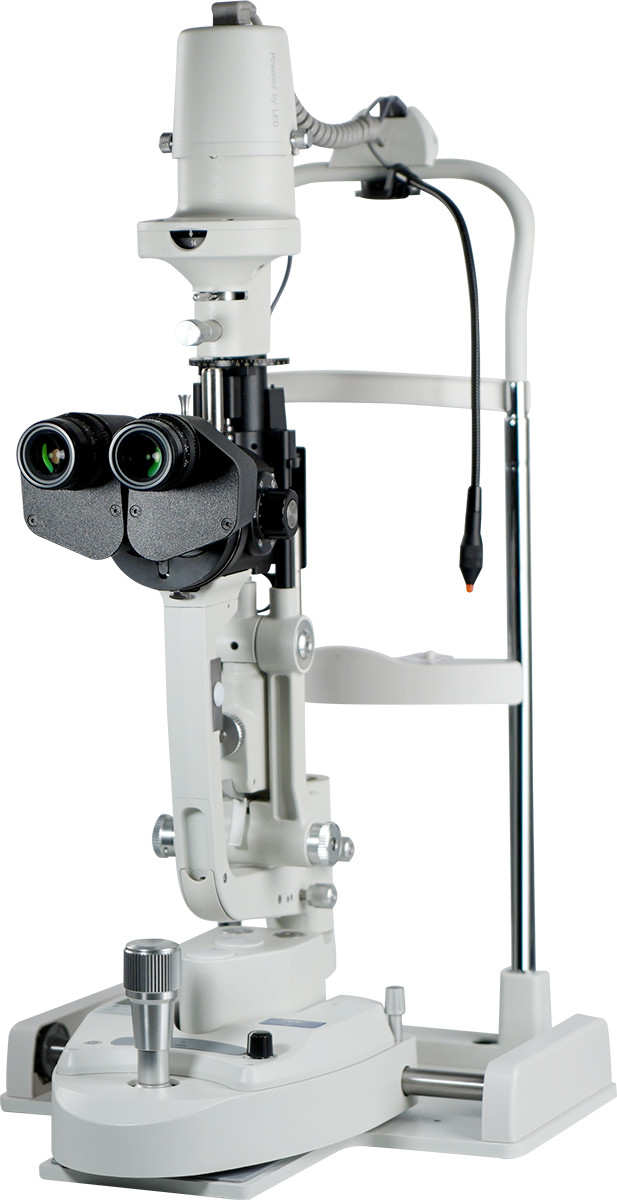

The S360 slit lamp microscope represents a 40% increase in optical resolution over previous models. It’s a perfect choice, when higher quality is necessary for safe, diagnostic results.
LED Illumination
The MediWorks LED merges a low color temperature with a high illumination intensity for retinal observation without glare. The S360 also provides vivid definition of the cornea and corneal nerves. You’ll also appreciate the LED’s longer life and lower energy consumption.
Easier Installation
Our compact control panel with built-in power simplifies the installation of the slit lamp. Without the usual chunky power supply, the S360 saves space and installs easily in most any instrument delivery system.
Imaging Solution
The S360 easily upgrades to the Firefly S390 for slit lamp digital imaging.
Send Me More Info on S360 Slit Lamp Pricing
Specifications
| Microscope | Paralel Optics |
|---|---|
| Microscope Type | 5 steps by Objective Lens Rotation |
| Magnification Change | Revolving Drum 5 steps |
| Total Magnification | 6.3X, 10X, 16X, 25X, 40X |
| Eyepieces | 12.5x |
| Angle between Eyepieces | 10˚ |
| Pupillary Adjustment | 52mm~80mm |
| Diopter Adjustment | +8D~-8D |
| Field of View | Ø36.2mm, Ø22.3mm, Ø14mm, Ø8.9mm, Ø5.7mm |
| Slit Illumination | |
|---|---|
| Slit Width | 0~14mm continuous (slit becomes a circle at 14mm) |
| Slit Length | 1~14mm continuous |
| Aperture Diameters | Ø14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm |
| Slit Angle | 0°~180° |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Filters | Heat-absorbing filter, Red-free filter, Cobalt Blue filter |
| Lamp | 3V LED Module |
| Luminance | ≥150KLX |
| Instrument Base | |
|---|---|
| Longitudinal Movement | 110mm |
| Lateral Movement | 110mm |
| Vertical Movement | 30mm |
| Fine Base Movement | 15mm |
| Chin-rest | |
| Vertical Movement | 80mm |
| Power Supply | |
|---|---|
| Input Voltage | 220V/110V~±10% |
| Input Frequency | 50Hz/60Hz |
| Power Consumption | 30VA (max) |
| Output Voltage | Lamp 6V, Fixation 3V |
| Packaging | |
|---|---|
| Dimension | 770mm x 470mm x 570mm(L/W/H) |
| Gross weight | 23kg |
| Net weight | 17kg |
